TBR TIRES

SZ300

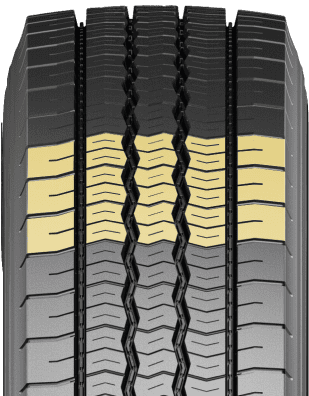

SZ300 pattern is designed for light commercial vehicles and suitable to use on all axles. Strong carcass structure provides high retreadibility feature. Delivers balanced drive, perfect comfort and high maneuverability on asphalt roads. Provides exceptional wet grip. The unique pattern design enhances mileage performance.

0%
    SZ300

    TECHNICAL HIGHLIGHTS

    • Unique pattern design and optimized block array provide excellent steering performance.

    • Horizontal sipes between circumferential blocks increase traction, decrease braking distance and provide outstanding grip on wet roads.

    • Z-shaped block structure provides excellent traction and secure braking performance.

    • Stone rejecters inside circumferential grooves prevent pebble penetration inside grooves, protecting the tread and carcass.

    • Circumferential grooves drain water quickly and efficiently.

    • Provides long life and resistance to irregular wear thanks to its special belt construction, optimized footprint and rigid shoulders.

    • All steel construction and specifically designed low profile structure meet all highway usage criteria and offer superior comfort.

    POSITION / APPLICATION

    SZ300

    ALL SIZES / TRUCK AND BUS

    MANUFACTURER CODE TIRE SIZE LOAD / SPEED
    INDEX
    LOAD CAPACITY SPEED LIMIT RIM DIAMETER (Inch) INFLATED DIMENSIONS (mm) INFLATED PRESSURE M+S SNOW FLAKE EU TIRE LABEL
    SINGLE DUAL RECOMMENDED PERMITTED SECTION WIDTH OUTER DIAMETER psi kPA ROLLING RESISTANCE WET GRIP NOISE dB NOISE LEVEL lbldwn
    70200 8.5 R17.5 121/120 L 2900 5600 120 6,00 5,25, 6,75 214 804,5 91 625 ü ü D B 70 A LABEL
    70300 215/75 R17.5 126/124 M 3400 6400 130 6,00 6,75 216 778 102 700 ü ü D A 71 A LABEL
    70350 225/75 R17.5 129/127 M 3700 7000 130 6,75 6,00 223 790 105 725 ü ü D A 71 A LABEL
    70400 235/75 R17.5 132/130 M 4000 7600 130 6,75 7,50 237 803 110 760 ü ü D A 71 A LABEL
