Agricultural Tires

UN9

Harvester rear and trailer tire.

UN9

TECHNICAL HIGHLIGHTS

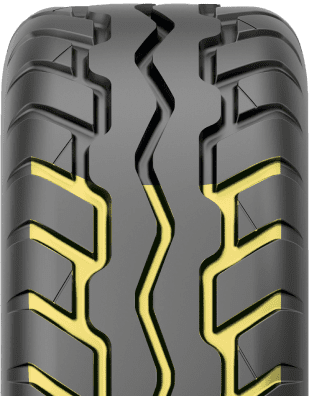

  • Unique pattern design allows excellent grip and handling in any condition.

  • Stable central tread section with open shoulder design offers high comfort and longer life.

  • Strong sidewall construction and resistant bead construction provides excellent protection against all kind of damage.

  • Good floatation and self-cleaning features.

  • Fuel consumption efficiency thanks to its low rolling resistance.

UN9

ALL SIZES Agricultural Tires

MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS(W/LOAD)
RECOMMENDED (INCH) PERMITTED (INCH) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
5852 16.0/70-20 14 TL 154 A8 / 142 A8 13 12 SDC, 13 SDC, 14 1075 418 475 3160
MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS(W/LOAD)
RECOMMENDED (INCH) PERMITTED (INCH) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
5854 400/70-20 14 TL 154 A8 / 142 A8 13 SDC 13, 14 1068 418 472 3140
INFLATION PRESSURE (PSI/BAR) LOAD CAPACITY PER TIRE, KG
SPEED(KM/H)
20 25 30 40 50
44 / 3.0 4160 3930 3695 3300 2970
48 / 3.3 4445 4200 3950 3525 3175
51 / 3.5 4725 4465 4200 3750 3375
41 / 2.8 4395 4155 3910 3490 3140
44 / 3.0 4535 4285 4035 3600 3240
46 / 3.2 4725 4465 4200 3750 3375
