Agricultural Tires

NB37

Traction type trailer tire with high resistance.

NB37

TECHNICAL HIGHLIGHTS

  • High load capacity, outstanding self-cleaning feature.

  • Reinforced sidewalls provide durability and protects the tire from side impacts.

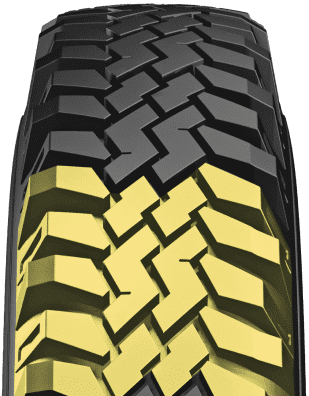

  • Special tread depth and geometry offer high resistance to cuts and tread wear.

NB37

ALL SIZES Agricultural Tires

MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS(W/LOAD)
RECOMMENDED (INCH) PERMITTED (INCH) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
5830 7.50-16 12 TT 121/A6 5.50F 4.50E, 5.00F, 6.00F, 6LB 803 216 354 2370
INFLATION PRESSURE (PSI/BAR) LOAD CAPACITY PER TIRE, KG
SPEED (KM/H)
10 20 25 30 40
52 / 3.6 1610 1420 1335 1245 1120
58 / 4.0 1760 1555 1460 1360 1225
73 / 5.0 1870 1650 1550 1450 1305

DOWNLOAD

NB37
