UN / 1(5RIB)

Modern harvester and trailer tire.

UN

OVERVIEW

UN1(5RIB)

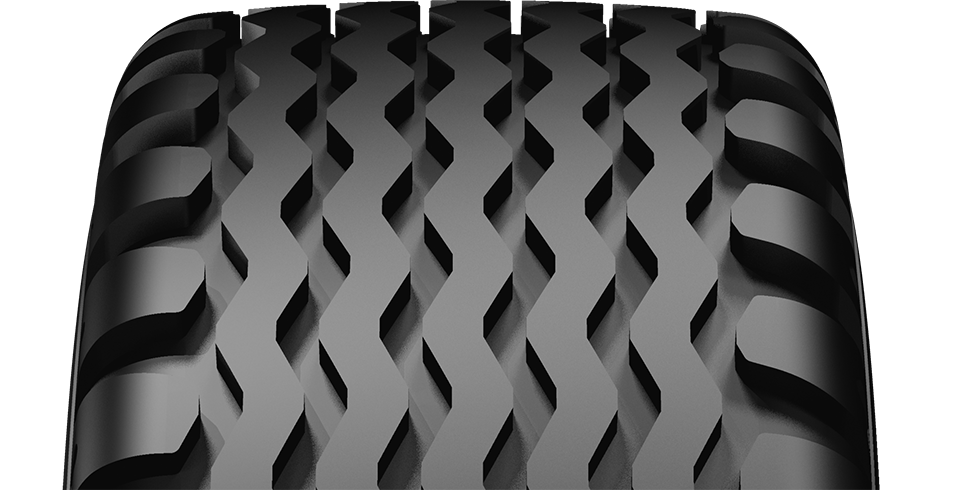

UN1(5RIB) Modern harvester and trailer tire. Demonstrates low dynamic rotating resistance thanks to its 5 Rib design. Suitable for short period transport and field use. Wide base area prevents slides to sides and sinking into the soil. Special tread design and structure ensures high resistance against cuts and wears.

more
  • UN
  • UN
  • UN

PROPERTIES

UN

PATTERN PROPERTIES

  • close

    High resistance against cuts and wears thanks to special tread compound.

  • close

    Suitable for short period transport and use in the field areas.

  • close

    Prevents from slide to sides and sinking into the ground due to its wide base area

  • close

    Low dynamic rotating resistance thanks to its 5 Rib design.

ALL SIZES

UN / 1(5RIB)

TIRE SIZEPRTT/TLLOAD INDEXSPEED SYMBOLRIMINFLATED DIMENSIONS (NO LOAD)INFLATED DIMENSIONS (W/LOAD)INFLATING PRESSURE (psi/bar)LOAD CAPACITY PER TIRE (KG)
RECOM. (INCHES)PERMITTED (INCHES)Section Width Min-MaxOUTER DIAMETER (MM)DYNAMIC RADIUS CIRCLE (MM)STATIC LOADED RADIUS (MM)Speed (KM/H)
1015202530405065
10,5/65-1610TT123A8W9W8-W8L274755230134546 / 3.2--17401640154513801240
10,5/65-1610TT123A8W9W8-W8L274755230134552/ 3.6--18351735163014551310
10,5/65-1610TT123A8W9W8-W8L274755230134555 / 3.8--19551845173515501395
10.00/75-15.3"10 10 R/F"TT/TL123A89.00-264760236835246 / 3.2--17401640154513801240
10.00/75-15.3"10 10 R/F"TT/TL123A89.00-264760236835252 / 3.6--18351735163014601310
10.00/75-15.3"10 10 R/F"TT/TL123A89.00-264760236835256 / 3.8--19501845173515501395
10.00/75-15.312 R/FTL126A89.00-264760236835258 / 4.00--17801680158014101270
10.00/75-15.312 R/FTL126A89.00-264760236835261 / 4.2--19501840173015451390
10.00/75-15.312 R/FTL126A89.00-264760236835268 / 4.7--21402020190517001530
10.00/75-15.314TL130-9.00-264760236835268 / 4.7--21902070195017401565
10.00/75-15.314TL130-9.00-264760236835273 / 5.0--23152190206018401655
10.00/75-15.314TL130-9.00-264760236835278 / 5.5--24652325219019551760
10.5/80-1810TT131A8W9W8-9274885274841240 / 3.1--21602040192017151545
10.5/80-1810TT131A8W9W8-9274885274841246 / 3.4--23102180205518351650
10.5/80-1810TT131A8W9W8-9274885274841254 / 3.7--24552320218519501755
10.5/80-1812TT137A8W9W8-9274885274841260 / 4.1--29002740257523002070
10.5/80-1812TT137A8W9W8-9274885274841249 / 3.4--24652325219019551760
10.5/80-1812TT137A8W9W8-9274885274841255 / 3.8--26952545239521401925
10.5/80-1814TT142A8W9W8-9274885274841255 / 3.8--28402680252522552030
10.5/80-1814TT142A8W9W8-9274885274841261 / 4.2--31052935276024652220
10.5/80-1814TT142A8W9W8-9274885274841265 / 4.5--33403155297026502385
11.5/80-15.312 12R/FTT/TL135A89.00-290845260038249 / 3.4--23352205207518551760
11.5/80-15.312 12R/FTT/TL135A89.00-290845260038255 / 3.8--25302390224520051805
11.5/80-15.312 12R/FTT/TL135A89.00-290845260038260 / 4.1--27502595244021801960
11.5/80-15.314TT/TL139A89.00-290845260038258 / 4.00--26002460231520651840
11.5/80-15.314TT/TL139A89.00-290845260038264 / 4.4--27852630247522101970
11.5/80-15.314TT/TL139A89.00-290845260038269 / 4.8--30602890272024302160
12.5/80-15.312TL139A89.00-307889257137845 / 3.1--27852630247522101990
12.5/80-15.312TL139A89.00-307889257137849 / 3.4--28802720256022852055
12.5/80-15.312TL139A89.00-307889257137854 / 3.7--30602890272024302190
12.5/80-15.316TL144A89.00-307889257137865 / 4.5--34203230304027152445
12.5/80-15.316TL144A89.00-307889257137871 / 4.9--35303330313528002520
12.5/80-1812TT142A8W911308965291543140 / 3.1--29402775261023302100
12.5/80-1812TT142A8W911308965291543146 / 3.4--31402965279024902240
12.5/80-1812TT142A8W911308965291543154 / 3.7--33403155297026502385
12.5/80-1814TT146A8W911308965291543155 / 3.8--32153035285525502295
12.5/80-1814TT146A8W911308965291543161 / 4.2--35153320312527902510
12.5/80-1814TT146A8W911308965291543165 / 4.5--37803570336030002700
13.0/65-1812TT138A811-336890282842046 / 3.2--33603175299026702400
13.0/65-1812TT138A811-336890282842049 / 3.4--35053310312027852505
13.0/65-1812TT138A811-336890282842052 / 3.6--29752810264523602125
13.0/65-1814TT141A811-336890282842050 / 3.6--27902635248022151995
13.0/65-1814TT141A811-336890282842058 / 4.00--30502880271024202180
13.0/65-1814TT141A811-336890282842063 / 4.3--32453065288525752320
15.00/55-1714TL137A813.0013391850246737044 / 3.00--25502410226520251820
15.00/55-1714TL137A813.0013391850246737049 / 3.4--27252575242021601945
15.00/55-1714TL137A813.0013391850246737052 / 3.6--29002735257523002070
19.0/45-1712TL141A816.00-491866261538830 / 2.1--29852820265523702130
19.0/45-1712TL141A816.00-491866261538833 / 2.3--31152940277024702225
19.0/45-1712TL141A816.00-491866261538836 / 2.5--32453065288525752320
340/55-1612TL140A811-343780232573549 / 3.4--26802530238021251915
340/55-1612TL140A811-343780232573552 / 3.6--28702705255022752050
340/55-1612TL140A811-343780232573558 / 4.00--31502975280025002250
400/60-15.514TL145A89.00-404874266139046 / 3.2--33653175299026702400
400/60-15.514TL145A89.00-404874266139049 / 3.4--35053310322027852505
400/60-15.514TL145A89.00-404874266139052 / 3.6--36553450325029002610
400/60-15.516TL147A89.00-404874266139064 / 4.4--36803475327029202630
400/60-15.516TL147A89.00-404874266139070 / 4.8--37603550334529852690
400/60-15.516TL147A89.00-404874266139075 / 5.2--38753660344530752770
500/50-1710TL143A816.00-503932284642023 / 1.6--29552790262523452110
500/50-1710TL143A816.00-503932284642026 / 1.8--31903015284025352280
500/50-1710TL143A816.00-503932284642029 / 2.00--34353245305027252455
500/50-1714TL143A816.00-503932284642044 / 3.00--36053400320028602575
500/50-1714TL143A816.00-503932284642048 / 3.3--38503635342030552750
500/50-1714TL143A816.00-503932284642051 / 3.5--40953870364032502925
